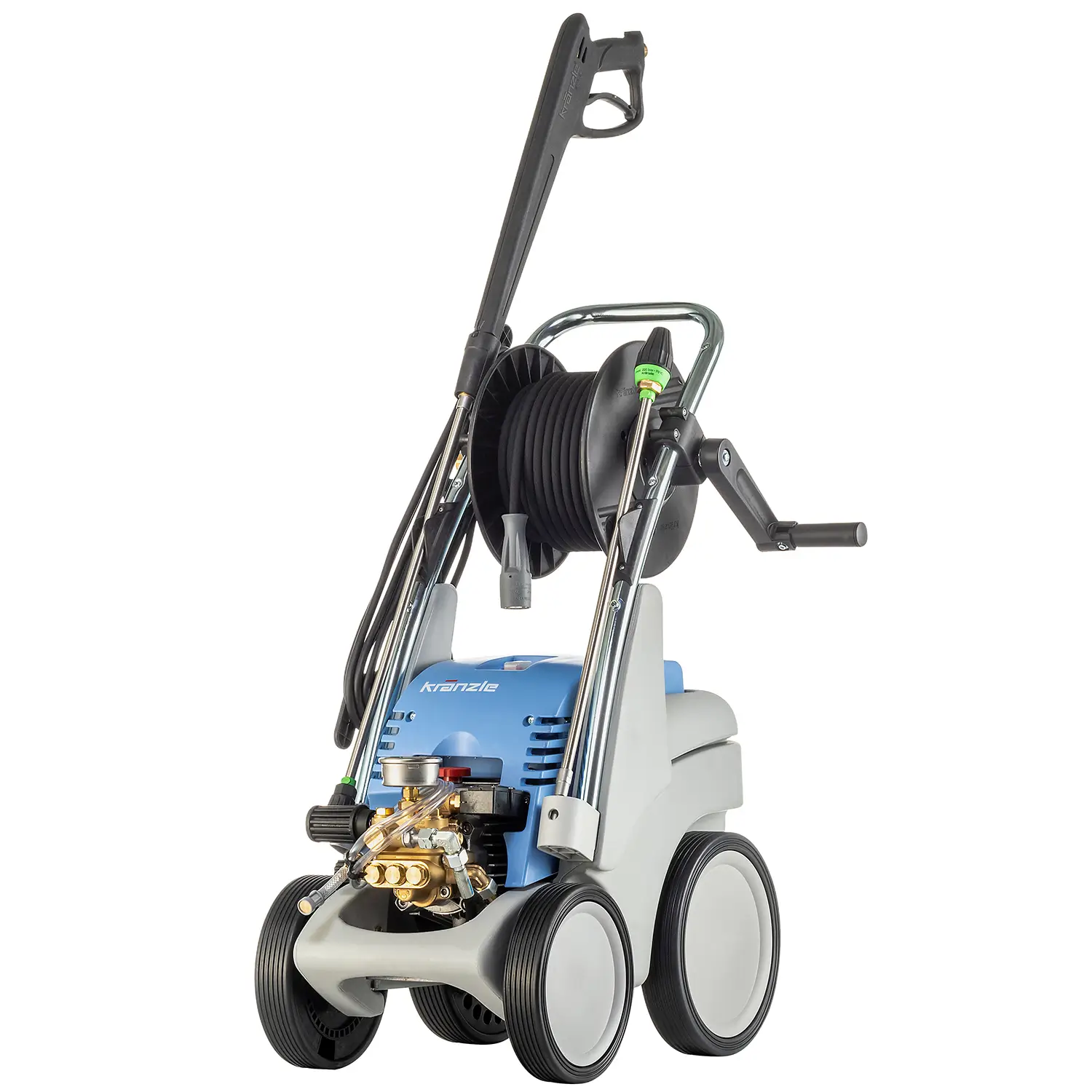

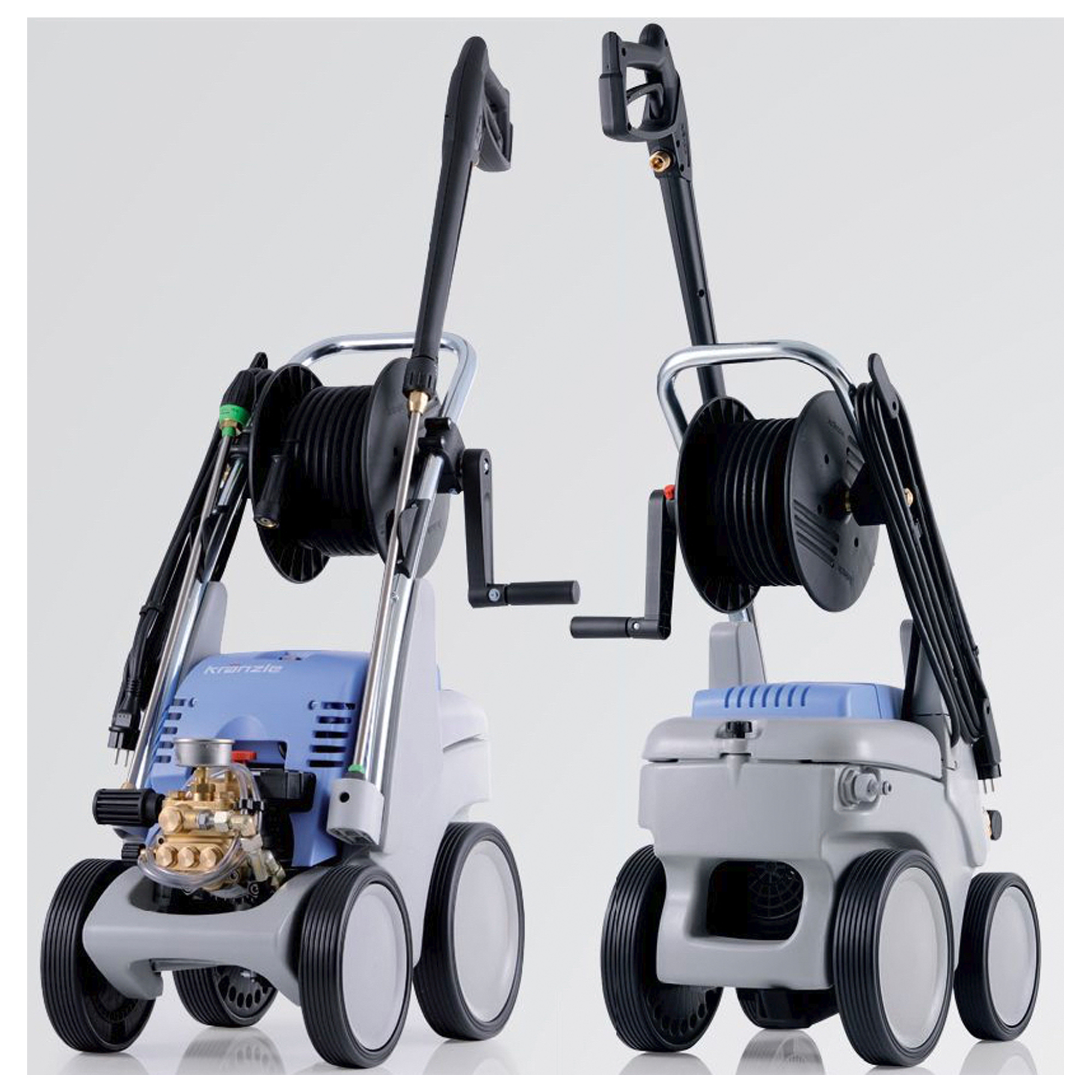

Kranzle Quadro 11/140 TST Quick Release

1,549.00

The brand new cold water Kranzle Quadro 11/140 TST 240V pressure washer; the most powerful single-phase electric washer available in the Kranzle range.

The Kranzle Quadro is equipped with large over-dimensioned gears and oil housings are used to noticeably increase the service life during rough industrial operation.

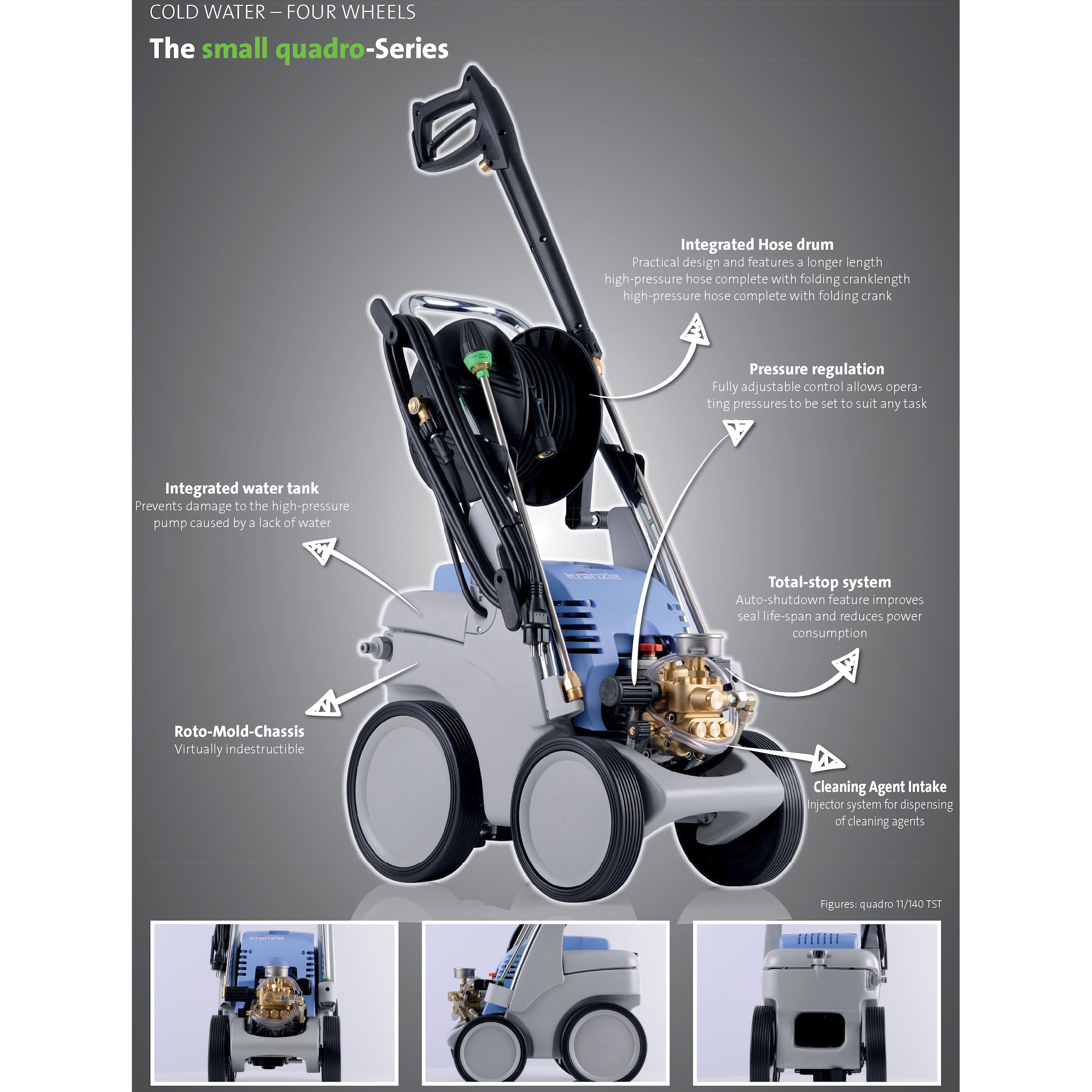

The integrated hose drum with foldable crank comes with 15 m high-pressure hose supplied with the smaller quadro TST series as well as the sturdy shock absorbing buffers and the integrated water tank.

The Kranzle quadro series. Powerful leading technology on four wheels with high-pressure chemical.

The letters ‘TS’ in the model name indicate the model is fitted with our Total-Stop system: while Kranzle machines do not need to turn off everytime you let go of the gun because of the superior un-loader system fitted. Excessive, unnecessary ‘on/off’ operation may actually shorten the life of motors, especially when running on extension cables or generators. Conversion between Bypass operation and Total-Stop is possible, relatively quick and easy should you want to use your machine the other way. The ‘TS’ models tested do have lower signs of wear to the seals, resulting with longer periods between servicing required. Energy costs are lower because when the trigger gun is released the motor stops automatically, then when the trigger gun is squeezed again, the machine restarts. The motor and pump only run when they are actually needed, saving electricity.

There are storage compartments for the trigger gun, Dirtkiller lance and Vario lance built into the casing of the machine. Winding lugs for the power cable keep the 5M power cable tidy, and also double as a quick storage grip for the lance and trigger gun in between use.

Includes:

15 Metre High Pressure Steel Braided Hose On A Hose Reel
Quick Release M2000 Trigger Gun
Quick Release Knife-Jet Lance
Quick Release Turbo Nozzle/Dirtblaster Lance



*Free nationwide delivery not available for this product, please contact us to discuss delivery options. Local delivery / Click & Collect are free.

Description

Operating pressure adjustable bar / MPa: 30-140 / 3-14

Max. admissible overpressure bar / MPa: 155 / 15

Connected load, V / ~ / Hz / A: 230 / 1 / 50 / 14

Motor speed Rpm: 1400

Water output l/min & l/h: 11 / 660

Power intake / Power output kW: 3.3 / 2.4

Volume water tank l: 7

Power supply cable, m: 5

Dimensions (L x W x H) mm: 590 x 360 x 850

Weight (kg): 46

Additional information

Brand

Kranzle

Power Source

Electric
